Designing The Ideal Transition Cow Barn

Step 1. Sizing the pens correctly

The actual duration of stay within any given transition cow pen (which includes the far-dry, prefresh, maternity, calving, colostrum, and postfresh management groups) is determined by two factors: the rate of calving and the target duration of stay in the pen.

Recommendations for pen sizes are typically based on the average flow of cows through the transition facility and do not take into account farm management decisions which vary time spent in the pen. For that reason, many transition cow pens are built that fail to accommodate the normal ebb and flow of calving rate over time. We recommend that a facility would be best constructed to accommodate the surges in calving rate, without compromise to stocking density within the pen. In essence, we will be overbuilding to some degree.

We have constructed a plan for sizing transition cow pens that allows us to accommodate cows in pens sized to cope with the normal increase in stocking density for 90% of the time. For five weeks a year (10% of the time), the farm will need to modify days spent in the pen to maintain the targets for stocking rate, or disease screening will need to compensate for a lapse in prevention. The procedure is as follows:

1. Calculate the weekly rate of freshenings for the herd

   For herds that are remodeling, we can graph this in programs like DC305 and file out the data into Excel. For new herds, we can estimate the number of calvings to be 104% of the rolling average number of cows in the herd, and the weekly rate will be this number divided by 52.

   For example, a 1,000-cow dairy will freshen 20 cows and heifers per week on average.

2. Calculate the 90th percentile of the weekly calving rate.

   Below (Figure 3) is an example of the weekly calving rate for a 1,200-cow dairy. The dotted line is the 90th percentile threshold (32), below which 90% of the cows calve and above which only 10% of the cows calve. The solid line is the average (24). Note that, by definition, if we build to accommodate the average, the facility will be overstocked half the time.

   For new facilities and for expansion herds, we need to use an estimate of the 90th percentile. Using data from 73 large herds, we have estimated that 140% of the average weekly calving rate is a reasonable estimate of the 90th percentile.

   For example, a 1,000-cow dairy would freshen 28 cows and heifers per week for 140% of average (1.4 x 20).

   Figure 3. Calving rate by week for a 1,200-cow dairy with average (solid line) and 90th percentile (dotted line) calculated.



3. Determine the target duration of stay in each transition cow pen.

   Factors such as target dry days, time of return of heifers to the close-up or far-dry pens, days in prefresh, time in the calving or maternity pen, and days in postfresh need to be decided. These are management decisions that will be farm dependent.

4. Calculate the number of cows in each group

   For example, a 1,000-cow dairy wishing to accommodate 28 cows and heifers per week in a postfresh pen sized to accommodate these cows to 21 DIM would need 28/7 x 21 = 84 stalls.

   We have brought these ideas together in a pen size calculator for use on farm.

   The calculator is shown below for a 1,000-cow dairy with a 60-day dry period and 21 days spent in the prefresh and postfresh pens.

   	Heifers	Cows	Total
   Weekly calvings (140% of average)	10	18	28
   Days in prefresh pen	21	21	21
   Days in calving pen	1.0	1.0	1.0
   Days in postfresh pen	21	21	21
   Average days dry	NA	60	60
   Days precalving to return to the dairy	30	NA	30
   Far-off dry cow/heifer inventory	12	103	115
   Prefresh pen inventory	29	55	84
   Calving pen inventory	1	3	4
   Postfresh pen inventory	29	55	84

   Once we know the inventory in each group that we need to build for, we can proceed with the rest of the building design.

Step 2. Provide adequate bunk space prefresh and postfresh

Using the above requirements, we know from the predicted inventory how many cows are in each pen, and we can calculate the feed bunk length of each pen knowing that we need to provide 30 inches of bunk space per cow in the prefresh and postfresh pens and 24 inches in the far-dry pen.

For example, a 1,000-cow dairy would need a 21-day prefresh pen feed bunk that was 84 x 2.5 feet = 210 feet long.

To accommodate our requirement for bunk space, transition cow pens should be built with only two rows of stalls – either tail to tail or head to tail or head to head.

For ease of cow identification, head to tail is preferred for farms where pen workers need to check cows for signs of labor every hour. Pens of around 30 stalls split with a 26-foot crossover with a water trough in the middle provide flexibility to cope with changing numbers of cows in each group over time.

Step 3. Minimize pen moves two to 10 days before calving

This will depend on the answer to the first question regarding whether just-in-time-calving will be used or a prefresh/calving pen. Different solutions have been found for different farms.

For example, the farm in Figure 4 opted for just-in-time-calving in individual calving pens. In this strategy, the prefresh pen is loaded with cows once a week in order to reduce social turmoil in the last week before calving.

In the farm shown in Figure 5, while they retained individual calving pens, they decided to create socially stable mature cow pens throughout the dry period with the provision of 5 x 25 cow pens. The pens are loaded at dry off, locked at 25 cows maximum, and allowed to empty before refilling. Heifers are managed in a separate group pen.

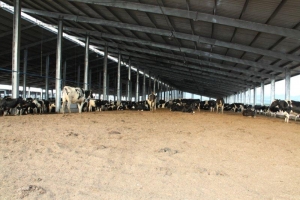

Finally, the farm in Figure 6 created socially stable bedded packs in which prefresh cattle calve where heifers may be grouped separately from cows.

Step 4. Sand-bedded stalls sized to accommodate the cow

Sand is the optimal bedded surface for the dairy cow and provides cushion, traction, and support at the time when the cow most needs it. Prefresh cows are the heaviest, widest cows on the farm and require the largest stalls. Mature Holstein prefresh cows should have stalls at least 50 inches wide, preferably 52 to 54 inches. This creates problems in mixed-age groups with heifers grouped in the same prefresh pen. However, I believe it is foolish to punish two-thirds of the herd in order to make sure that the stalls are small enough for heifers to stay clean. Most farms choose to compromise with a 50-inch wide stall and remove manure from the rear of the stalls more frequently. Ideally, strategies that provide different size stalls for separate mature-cow (52 to 54 inches) and heifer groups (48 inches) can be utilized. Post-fresh stalls for mature Holsteins are usually sized at 50 inches wide.

Step 5. Provide sufficient stalls and bedded pack space

For prefresh cows and maternity cows, bedded packs should provide 120 square feet per cow minimum. Because the bedded area should not be deeper than 35 feet, this usually results in ample bunk space, and typically the area occupied by the pack is 15% larger than the area occupied by an equivalent freestall layout. Waterers should be located in the bedded area but shielded so that the cow must drink from the concrete feed alley side (Figure 7).

Prefresh cows decrease lying times by around 3 h/d in the last week before calving compared to far-dry cows. At this time, they do not need to be competing for a stall, so we recommend at least one stall per cow throughout the transition period.

Conclusions and Economics

A 1,000-cow facility built to accommodate the 90th percentile of average weekly calving rate would require 61 more stalls than a facility built to accommodate the average. At $3,500 per stall, this equates to $213,500 or $214 per cow.

For us to convince the farm (or the banker) to build this barn, you would need to believe that a facility built to accommodate 90% of the ebb and flow of calving rates would provide 1,337 lb more milk per cow than a facility that is overstocked 50% of the time, to pay back the extra cost in one year. Of course, the deal is even better than that, because we can pay off the barn over five years, making the required increase in milk only 280 lb per cow.

We have the opinion that when it comes to transition cows, you either pay at the beginning – to build the facility that encourages health and productivity, or you pay at the end, with broken cows and elevated culling rates. The choice is easy from our perspective and that of many Wisconsin dairy farmers who have already acted on our recommendations.
