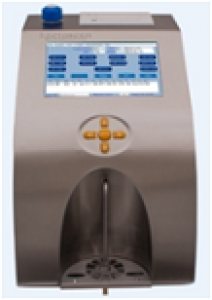

Lactoscan LAWS
| Parameter | Measuring range | Accuracy |
| Fat | 0,01– 45% | ±0,06% |
| Solids-non-fat (SNF) | 3% – 40% | ±0,15% |
| Density | 1000 – 1160 kg/m3 | ±0,3kg/m3 |
| Protein | 2% – 15% | ±0,15% |
| Lactose | 0,01% – 20% | ±0,2% |
| Added water | 0% – 70% | ±3 |
| Milk sample temperature | 5°C – 40 °C | ±1% |
| Freezing point | –0,4°C — –0,7°C | ±0,005% |
| Salts | 0,4% – 4% | ±0,05% |
| PH | 0 – 14 | ±0,05% |
| Conductivity | 2 – 14 [mS/cm] | ±0,05% |
| Total solids | 0 – 50% | ±0,17% |
Key features:
• User-friendly: simple in operation, maintenance, calibration and installation
• Portable and compact design
• Very small quantity of milk required
• Low power consumption
• No use of hazardous chemicals
• One year full waranty
• Measuring accuracy adjustment can be done by the user RS 232 Interface
• ESC POS Printer Support
• Two samples self-calibration
Environmental Conditions
Ambient air temperature — 10°C –40°C (option 43°C)
Milk temperature — 1°C – 40°C
Relative humidity — 30% – 80%
Electrical Parameters
AC Power Supply voltage – 220V/110V
DC Power Supply voltage – 12V to 14,2V
Power Consumption 30W max
Mechanical Parameters
Dimensions (W x D x H) 250x290x300 mm
Weight < 4 kg
